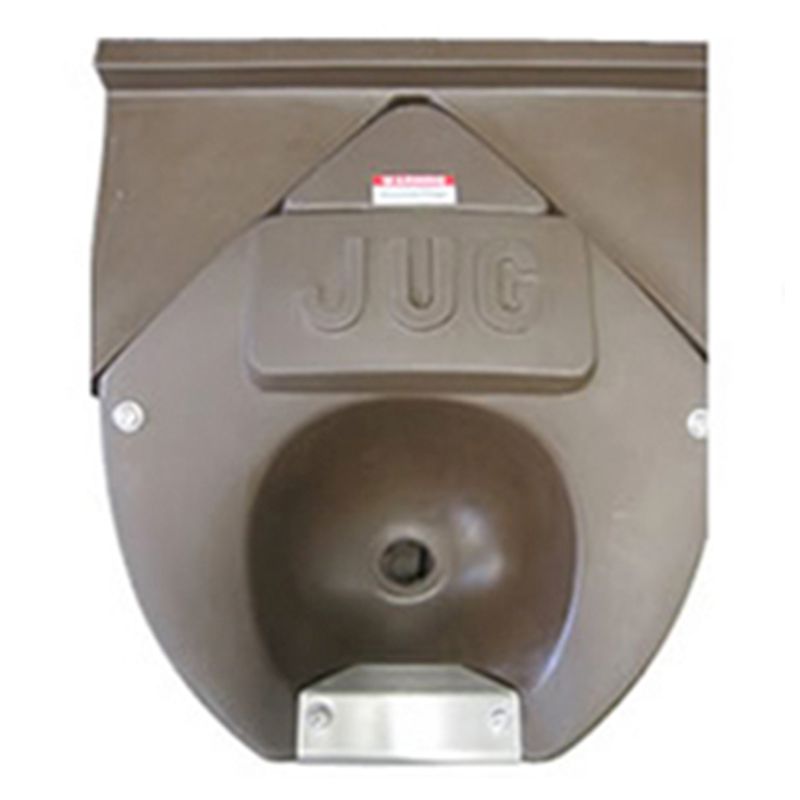

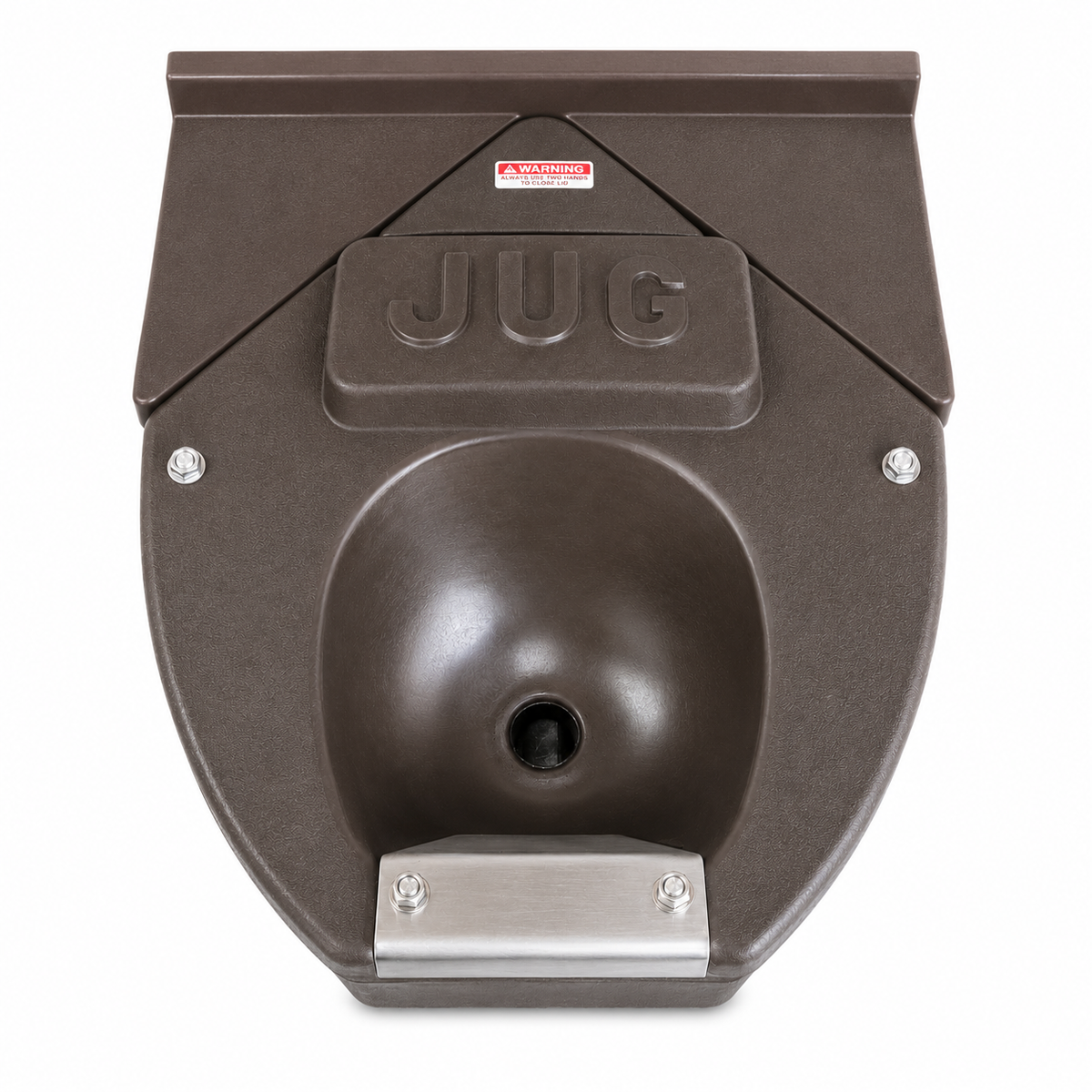

The JUG Stall Waterer was designed with your horse in mind. The durable rotomolded plastic construction features rounded edges for animal safety and a stainless steel bite plate to prevent damage from cribbing.

The same clean, freshwater technology of the JUG ground-mounted, stand-alone models is offered in the Stall units. The waterer has a 2-gallon reservoir capacity for your animals and a quick recovery float valve.

TIP: There is a slight mark on each bowl that shows the suggested level of water to have in each unit.

The Stall Waterer has an external drain plug and a float adjustment screw to aid in ease of maintenance, cleaning, and water level management.

The Stall Waterer features a versatile installation allowing you to run the waterline from below or overhead. The overhead application will require a small drill to drill a small access hole into the back corner of the unit and plumb in your water from the top.

FEATURES

• Animals adapt easily - no flaps to lift, discs or balls to push. Animals drink naturally, even young ones
• Clean, Clean water - The Draw Tube/ Feed Trap doesn't allow debris to fall into the tank reservoir, which means less maintenance, and clean water.
• Super Insulation - The strong polyethylene body has thick urethane foam which means cooler water in the summer and warmer water in the winter.
• External Adjustment Screw - Provides easy adjustment of the water level in the bowl when introducing new animals to their water source. After they learn there is a constant clean water supply, lower the water level. It’s easy for you and your animals.
• Mounting - The 303 FB JUG is mounted against a flat wall of a stall. Use your own hardware or purchase the Wall Mounting Kit #13550 separately.
• External Drain Plug - For easy draining of water from the JUG’s 2-gallon reservoir.
• Bite Guard - An 18 gauge stainless steel guard, prevents damage from cribbing. Capacity: The 303 JUG with its 2-gallon reservoir, and quick recovery Float Valve, offers plenty of water capacity for your horses, large or small.
• Valve - The Fluidmaster Float Valve used on the 303 is among the most reliable, trouble free valves available today.

INSTALLATION

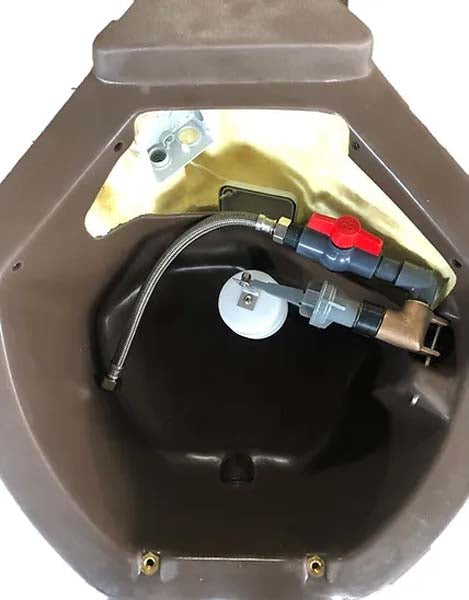

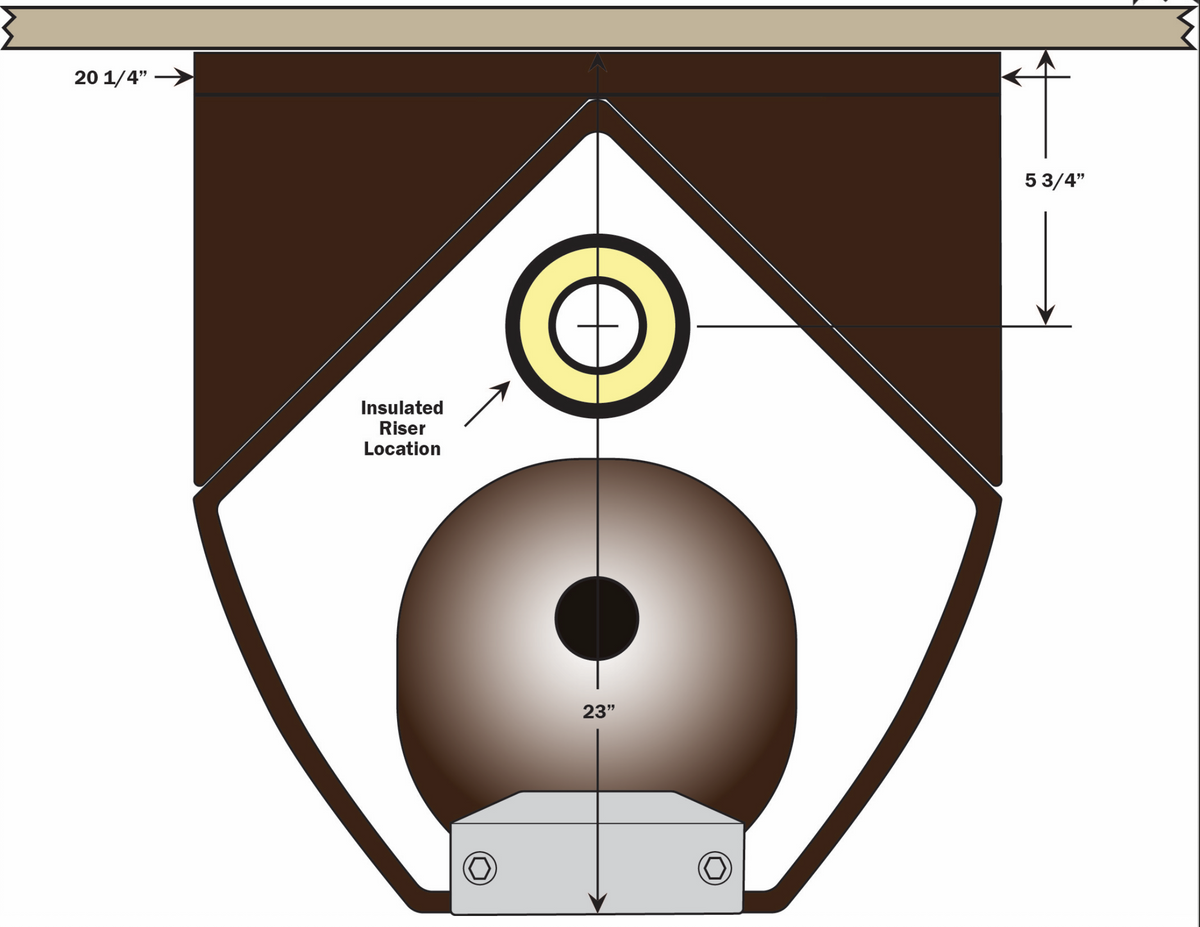

There are a number of waterline hook-up options when placing an Energy Free 303 in a heated barn or in a warm climate area. The waterline can come from underneath either on its own or through a riser tube but commonly comes to the 303 overhead as shown in the picture to the left.

Modern, Yet Simple The 303 JUG features the most modern up-to-date styling available in a horse stall waterer. Yet the 303 is extremely simple with very few moving parts
