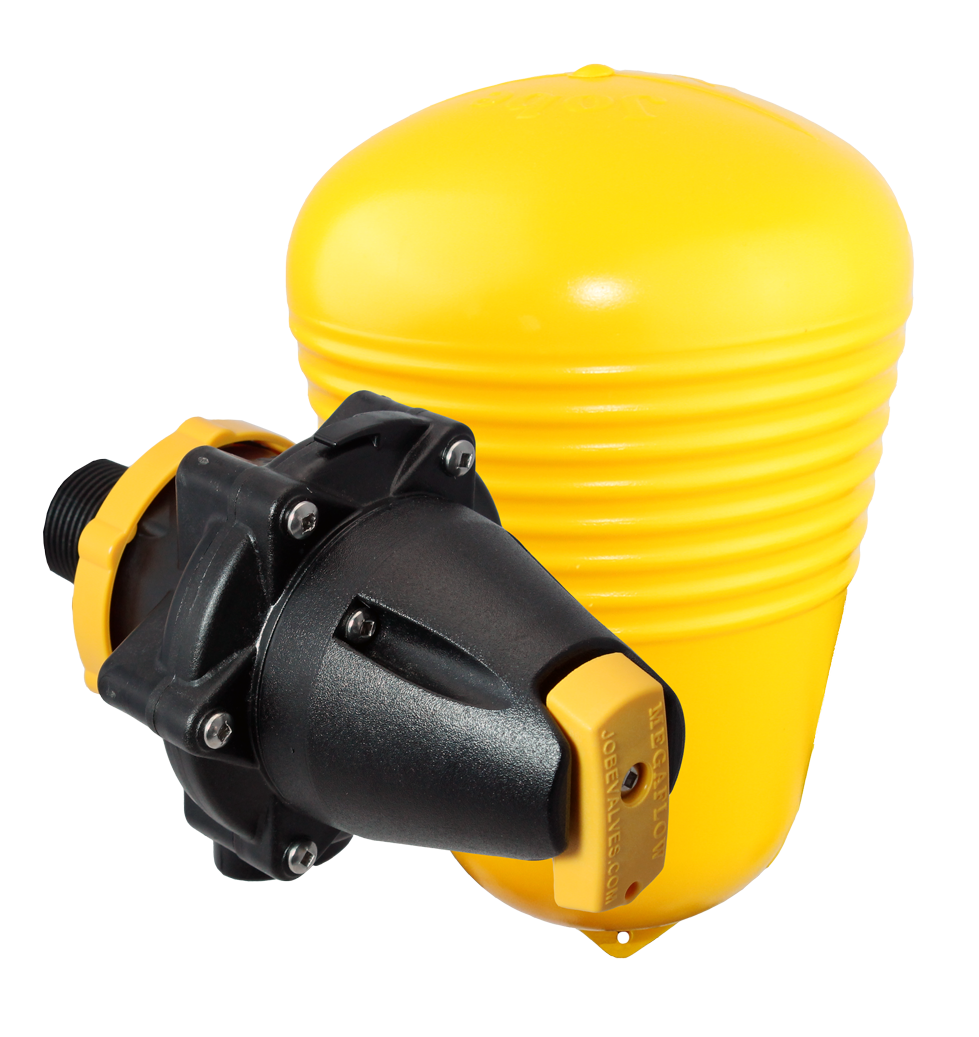

Jobe Megaflow trough valves are float operated valves for use in the automatic filling of water troughs. The Short Tail versions are ideal for thin-walled tanks. The valve is configured for underwater mounting only. The float is connected to the valve with a nylon cord, this operates a pilot valve, when the water level drops, the pilot valve is opened and the main diaphragm valve is activated. Jobe Valve Megaflow is a good choice where its high flow, compact, robust, non corrosive construction is beneficial.

TIP: WHEN INSTALLING - be sure to flush the waterline before installing the valve to prevent debris from accumulating in the valve.

FEATURES

• High flow
• Compact robust construction
• 3/4" - 21/2" water level differential (increases as water pressure increases)
• Positive on/off operation
• Lock off with cord lock
• 5-150 PSI pressure rating
• Inlet filter
• Construction from corrosion resistant materials
• Underwater installation helps avoid freezing
• Valve is less prone to stock damage.

DOWNLOAD JOBE VALVE MEGAFLOW SPEC SHEET HERE

Megaflow Installation Video

Megaflow Disassembly and Assembly Video

Jobe Valve Megaflow Features
