Ritchie CattleMaster 480 #18248
$1,625.00
On Sale
Compare to
$1,706.00
Save
5%
Select Accessories
We will contact you with a freight quote once order is processed. Otherwise, please contact petecosupp​ly@gmail.c​om for a freight quote prior to purchasing​.
Enter your text
In stock: 20 available
Save this product for later

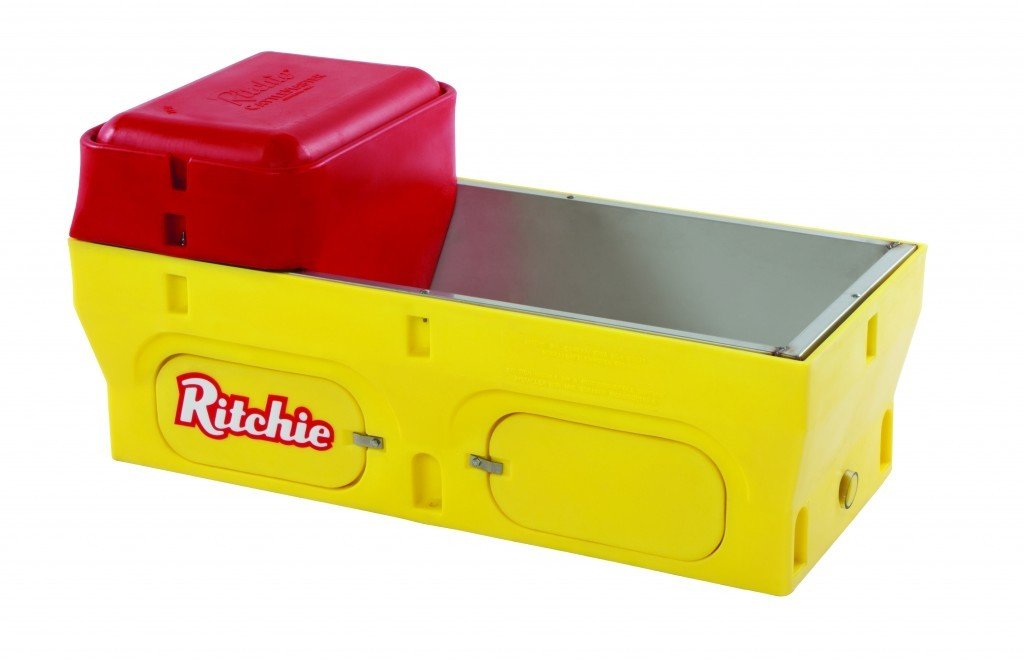

Ritchie CattleMaster 480 #18248
Product Details
Brand:
Ritchie Industries
Part Number:
18248
Length::
51in/129.54cm
Width::
23.5in/59.69cm
Overall Height::
24in/60.96cm
Drinking Height::
16in/40.64cm
Shipping Weight::
90lb/40.82kg
Heat::
548W (4.6A@120V)
Capacity::
20gal/75.71L
Herd Capacity::
200 beef, 100 dairy
The CattleMaster 480 is a fully insulated automatic waterer for cattle, large herds and feedlots. The 480 is 4 foot long featuring an impact resistant casing, a fast refill valve and overall heat coverage that can withstand extreme winter weather conditions. Ideal for large pastures or pen. Waters up to 200 beef or 100 dairy. Drink height 16".
DOCUMENT CENTER | ||
CattleMaster Instruction Manual | CattleMaster 480 Footprint | CattleMaster 480 Parts breakdown |
- Install using the same concrete pad and drain-out configuration as the CattleMaster 48
- Unique water seal technology keeps cold air away from valve
- Electric heat standard; attached directly under the trough for maximum performance
- Cable heater provides extra valve and supply line protection
- Trough and hardware is 304 stainless steel for durability and long life
- Fully adjustable thermostat
- Meets Grade A dairy recommendations
- Constant flow optional
- Trough slopes toward drain for quick and easy cleaning
- 10-year manufacturers warranty
