Ritchie Omni 2 Heated Automatic Waterer

$799.99
On Sale
Compare to $865.99
Save 8%
Select Accessories
In stock
Save this product for later
Have questions?
Share this product with your friends

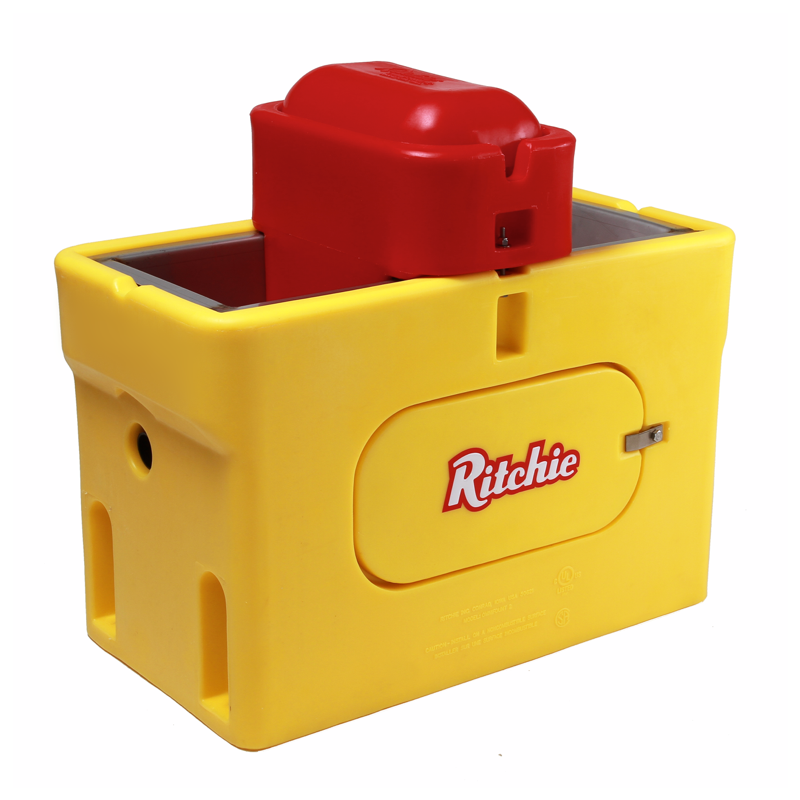

Ritchie Omni 2 Heated Automatic Waterer
Product Details
Brand: Ritchie Industries
Part Number: 16619
Length:: 28.3
Width:: 14.5
Overall Height:: 25
Drinking Height:: 18
Shipping Weight:: 30
Heat:: 298W (2.5A@120V)
Capacity:: 2.2 gallons
Herd Capacity:: 40 Beef, 40 Horses
Flow: Standard 40-60 PSI

The OmniFount 2 is the most popular, heated unit on the market. The waterer is double-sided, heat standard automatic waterer for horses or cattle. Ideally used when splitting a fence for small pens and paddocks. The Omni Fount will water between 1-40 horses or beef with it's fast refill valve.

Drink height 18" and will provide a constant supply of water even in extreme temperatures.

DOCUMENT CENTER
OmniFount Instruction Manual Omni 2 Footprint Omni 2 Parts breakdown
SHOP BY OMNI 2 PARTS BREAKDOWN

FEATURES


  • Easy to maintain and clean
  • Large access panel for easy access to heating components and waterline.
  • Heating elements are located directly under the stainless trough for overall heat coverage and reliable service in the most extreme temperatures
  • Cable heater provides extra valve and supply line protection
  • Insulated with highly energy efficient polyurethane foam, providing an r-factor of 7 per inch
  • Water between 1-40 horses
  • OmniFount unit comes complete and ready to install to your electric and water lines.
  • 4 - 5" x 3/8" Stainless Steel anchor bolts recommended to anchor to the concrete pad.
  • 10-year warranty

Most popular unit in areas that have severe winters.


INSTALLATION RECOMMENDATIONS


Each Ritchie automatic waterer will require a buried waterline and a concrete pad.

EXTRA ACCESSORIES OR CONSIDERATIONS:

  • Each unit will require 5" x 3/8" anchor bolts
  • An all weather sealant around the base of the unit will prevent air gaps and cold from penetrating the underside of the unit.
  • The Omni Series will need electric for the heat system yet will be energy efficient throughout the winter
  • If you have high water pressure - water pressure that exceeded 60 PSI may cause the valve to leak. Install a pressure regulator on the line.
  • Consider placing a stop and waste valve on the waterline to drain the line back to the original source. Automatic waterer installation are considered long-term and the stop and waste valve will be a nice, not often used, that will protect your line in the event it's not in use.
  • Ensure the waterer is installed level.
