Schaefer 24 In F5-24 Circulation Fan to maximize hair growth
$469.99
FREE SHIPPING
Compare to
$478.00
Save 2%
In stock: 3 available
Save this product for later

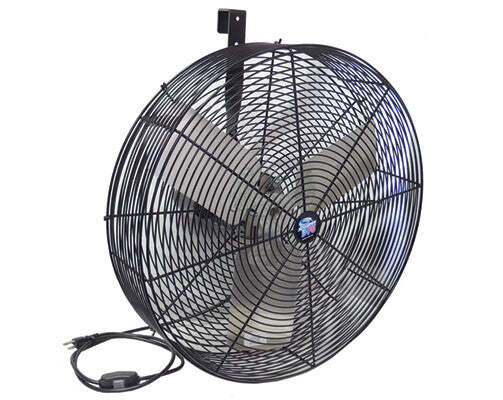

Schaefer 24 In F5-24 Circulation Fan to maximize hair growth
Product Details
Brand:
Schaefer
Part Number:
F5-24
Length::
See Specifications Below
Width::
24 Inch Diameter
Shipping Weight::
40 Lbs
Color::
Housing Color - White
Warranty::
2-year Manufacturer Warranty
-
The Schaefer F5™ livestock fan is a high velocity circulation fan designed to provide the ideal environment for maximum show animal comfort and hair growth. Built to withstand the impact of show travel, the F5 comes with dependable, long lasting motor and guards for extreme durability.
FEATURES
- Industry leading airflow and air velocity to keep livestock cool and maximize hair growth
- Heavy-duty steel guards with reinforced ribs and outer rings, built to withstand the impact of show travel
- Powder coated black finish over guards for stylish appearance to blend with show displays
- Corrosion resistant inside and out for durability and long life
- Powerful motors with unique low solidity ratio blade for best-in-class efficiency and quiet operation without sacrificing airflow and speed
- Flexible, 7 foot cord with water resistant and weather proof on/off switch for convenient operation
- Hang mount included for easy set-up and take-down
- Two year warranty
- Made in the USA
- 19% quiter and 17% more energy efficient
SPECIFICATIONS
BLADE COLOR | Metalic |
Cfm (free air) | 7680 |
Drive | Direct |
Enclosure | TEAO |
Frame Size | 48Z |
Phase | 1 |
Speeds | 1 |
VFD Compatible | No |
Cfm/watt (free Air) | 15.6 |
Cord | included-wired |
Diameter (inches) | 24 |
Frequency (hz) | 60/50 |
Guard Color | Black |
Nameplate Amps | 4.8/2.4 |
Number of Wings | 3 |
Bess Lab Performance test # | 13214 |
Power | 1/2 |
Product Dimensions (l X W X H Inches) | 25.75" x 14.25" x 28.375" |
Product Net Weight (lbs) | 40 |
Switch | on cord |
Voltage | 115/230 |
Maximum RPM | 1725 |
Air Velocity (@ 5 Times Diameter) | 1240 |
Blade Material | Aluminum |
Product Color | Black |
Product Shipping Dimensions (in) | 26x26x18 |
Speed Control Compatible? | Yes |
Cfm Range (free air) | 5001-10000 |
Cord Length (feet) | 7 |
Fixed or Portable | Fixed |
Guard Material | Powder Coated Steel |
Oscillating | No |
Rpm 50 HZ Motor | 1350-1500 |
Country of Origin | US |
Guard Spacing (inches) | 1/2 Osha |
