The Smucker 10 ft. self propelled kit can easily be mounted to your existing spray boom. Each 30" sponge section has a separate feed tube that adapts directly to the closest TeeJet or Hypro nozzle body. Nozzle body caps are also included to shut any tip that is not feeding a sponge section. Using special brackets, U-bolts, and risors, you will be able to easily attach the sponges to your boom quickly.

The brackets also allow you to remove the sponges quickly without the need to remove the U-bolts.

This is a quick convert kit to turn your sprayer into a weed wiper and eliminate taller growing weeds with very little chemicals.

Note: Use NB38NU (included in this kit) to attach your brackets to 2" or smaller booms.

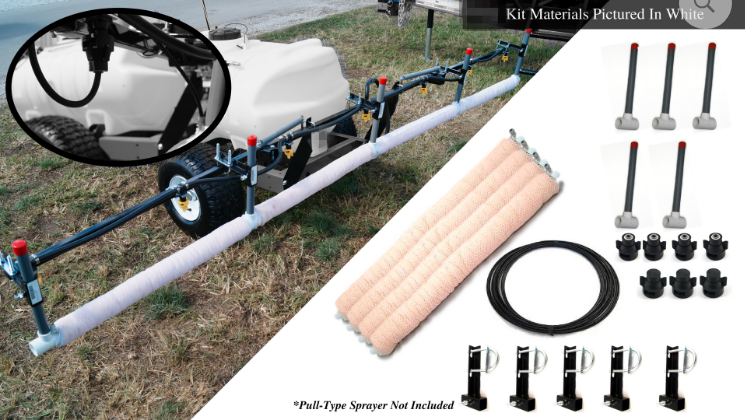

Kit Includes:

1 - Instruction Manual

5 - Bolts, 5/16X1 - part number NB3140

5 - Nut, Plated 5/16 - part number NB31PL

10 - Nut, Plated, 3/8 N/C - part number NB38NU

5 - Bolt, U, 5/16 - 18X2X3 - 11/16 - part number NBUB07

3 - Cap & Gasket, Shut off - SS-19843NYR

4 - TeeJet Nozzle, Con w/1/4 PTC & Washer - SS-QJ98588 - 1/4

8 ft. - Tubing, Black, 1/4" Solid - WW1215

5 - WW Mounting Bracket - part number WW2344

5 - T-Riser Assembly, Top Crop - part number WW2346-TC

4 - 30" Sponge Assembly - WWTC30

Download the Instruction Manual.
