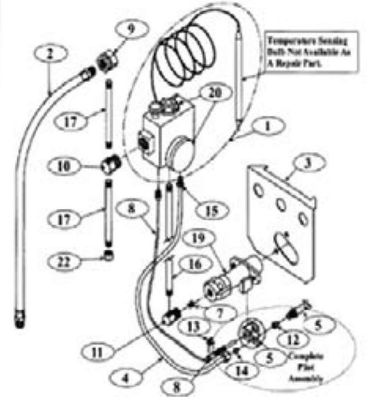

Replacement burner assembly for the 66B Tank Heater. Now comes standard with connector kit!

The Trojan 66B Stock Tank Heater offers a thermostatically controlled heating solution that uses LP Gas or Natural Gas instead of electricity in your stock tank. Our 66B offers a powder coated, heavy steel casing and a control & burner assembly that is designed to stay lit and is easily removed for servicing. Adjustable brackets allow the 66B to be mounted to most metal, poly, wood and concrete tanks. The Trojan 66B Stock Tank water Heater keeps a 3 to 5 foot radius of drinkable water around the heater at all times.

NOTE: Must be Installed with a Low-Pressure, non adjustable regulator. USE PACKAGE CONNECTOR KIT.

Features

• 12,400 BTU every hour if needed
• No gasket to melt or leak
• Long-lasting heavy steel casing
• Control and burner assembly easily removed for servicing
• UPS Shippable
• AGA listed automatic control for safe operation
• Easy to light and stays lit in the winter
• Adjustable brackets fit most steel, wood, poly or concrete tanks

TIP - ENSURE THAT THE 66B IS LEANING SLIGHTLY FORWARD. This will allow condensation to run off of the top.

66B Instruction Manual

---

FAQ's

"Can I replace just the thermostat on my older burner assembly? (Thermostat on side), or can I replace it with a new version only?" ANSWER: The older style assemblies used the Robertshaw Unitrol mechanism which are no longer available. The new burner assemblies are sold as a complete assembly and do not have individual parts available (with the exception of the orifices and other small pieces). The new assembly does come standard with the regulator and new hose attachment for a fresh clean start.

"Is the new burner assembly compatible with the older style casing?" ANSWER: Yes. The older style casing and the new burner assembly are interchangable. The only difference is the location of the thermostat knob which is currently located on the top of the assembly.

---

66B Instruction Manual
